Reliable, Remote Site Management

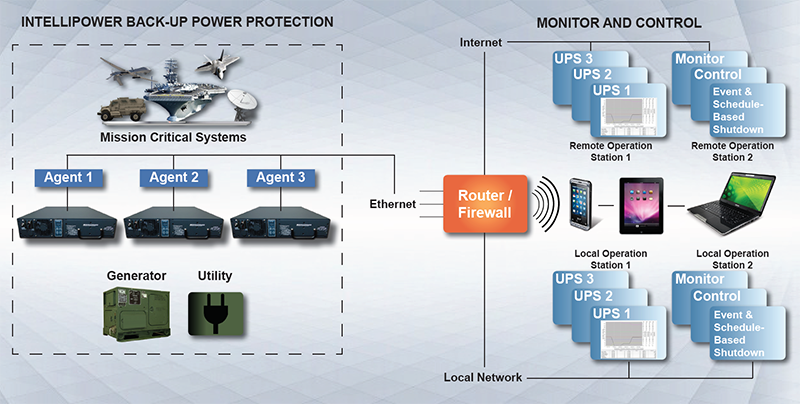

IntelliPower UPS solutions protect mission-critical applications by utilizing high-efficiency, power-switching technology which can be remotely monitored and managed via powerful safe shutdown and communications software applications included with our systems.
Power management software along with many standard communications protocols, is the ultimate protection for your electronic equipment.
IntelliPower UPS Interface Communications include:
SNMP Agent Modules
Monitor features & benefits include:
- Individual SNMP agent, UPS basic system and network information including alarms upon selectable events
- Input, output, load %, battery and other instantaneous or historical measurements
- Export and/or view event and data logging
- Measurements displayed in table and graphical formats
Control features include:
- Network user access password protection
- Turn off/on UPS output upon manual selection, conditional events and scheduled events
- Safely shutdown servers, workstations and virtual machines upon conditional events and scheduled events
- Change user interface webpage language settings
Ethernet/IP, CIP
IntelliPower systems support ethernet/IP (EIP) for your industrial process automation, monitoring and control applications. Use this common industrial protocol (CIP) to interface multiple IntelliPower systems with supported programmable logic controllers (PLC), operator stations and other industrial network devices.
- Configurable with embedded web server
- 10/100 Base T
- RJ-45, 8P8C modular connector
RS-232/USB
Monitor features & benefits include:
- Individual UPS and basic system information including alarms
- Input, output, load %, battery and other instantaneous or historical measurements
- Export and/or view event and data logging
- Measurements displayed in table and graphical formats
Control features & benefits include:
- User access password protection
- Turn off/on UPS output upon manual selection, conditional events and scheduled events
- Safely shutdown servers, workstations and virtual machines upon conditional events and scheduled events
- Change user interface language settings
Dry Contacts
Utilize in-house dry contact supported configurations or software packages included with the purchase of IntelliPower systems. The number of features available utilizing dry contacts is roughly proportional to the number of electrical channels available. This approach is often used for reporting one event type or executing one control feature between a UPS and a managing device.
IntelliPower UPS Safe Shutdown Software includes:
Standard Operating Systems
Safe shutdown software is available for Windows, Linux, UNIX and FreeBSD operating systems. Upon events such as Input Power Fail, Low Battery, or Low Capacity, the safe shutdown application initiates a safe and clean shutdown of one or more managing computers. Files may be saved and applications may be run before shutdown. Shutdowns can also be scheduled.
Hypervisors & Virtualization
Safe shutdown software is available for Microsoft Hyper-V, VMware ESX, and VMware ESXi. Upon events such as Input Power Fail, Low Battery, or Low Capacity, the safe shutdown application initiates a safe and clean shutdown of multiple virtual machines and the host machine.
